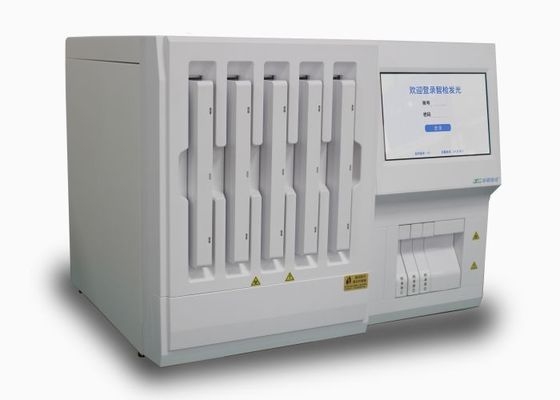

5 Channel Fluorescence Spectra Analyzer , 4-8mins Hormone Analysis Machine

Multiple-Channel Precision Homogeneous Fluorescence Analyzer

1. Theory:

The traditional Immunofluorescent test is not Homogeneous immunofluorescent test. Because the reaction time is short, bad uniformity, the precision and the sensitivity of the immunofluorescent test are poor.

With Homogeneous Fluorescent technology, the antigen of the sample and the antibody of the reagent are fully Homogeneous reactions. According to the dynamic monitoring of the fluorescence signal to superimposed signal, to improve the sensitivity, to get more accurate results; for the high concentration solution, after the system acquire enough fluorescent signal, end the reaction in advance and report. According to adding immune reaction time, superimposed the fluorescent signal to assay the micro samples.

2. Advantages:

a. Wide Test Range:

With the dynamic monitoring of the fluorescence signal, Homogenous Fluorescence Analyzer has a wide test range: 1.0 to 250,000 mlU/mL

b. Short Test Time:

With the dynamic monitoring of the fluorescence signal, Homogenous Fluorescence Analyzer acquires the value of the fluorescence at a different time to rapidly get the result for the high-risk patients, and strive for more time for the patients. The cTnl can get the result in 4 minutes (traditional fluorescence tests requests around 15 minutes.)

c. High sensitivity:

With high-sensitivity fluorescent materials, homogenous immune reaction, and dynamic monitoring technology, Homogenous Fluorescence Analyzer improved the test sensitivity greatly. At 4 minutes, the sensitivity of cTnl can reach 1.6ng/ml; at 10 minutes, Hs-cTnl, the sensitivity can reach 0.04ng/ml.

d. High precision:

With homogenous immune reaction technology which is similar to biochemical chemical Luminescence reaction, the precision could be 5% to 10%, while the precision of the traditional fluorescence analyzer is only 10% to 20%.

e. All-in-one design for the kit:

With the sample bin, immune reaction bin, test window, and TIP nozzle all in one kit design, it's more convenient for operation, also, this could avoid the direct touch of the samples.

f. Quality control and calibration.

Quality control and calibration guarantee the accuracy of the test result and the Normative of the laboratory.

3. Main features:

1. Full automatic, no liquid path, easy to operate and reliable;

2. one-person kit, no cross-infection;

3. Quality control and calibration module, guarantee the accuracy and the stability of the results;

4. Sample types: Serum, Plasma, Whole blood, Urine, etc.

5. Maximum test speed: 60 tests/ hour;

6. 5 tests at the same time;

7. Maximum loading of samples: 125 pcs;

8. Test time: 4 to 8 minutes(different tests, the time would be different.

4. Test projects:
